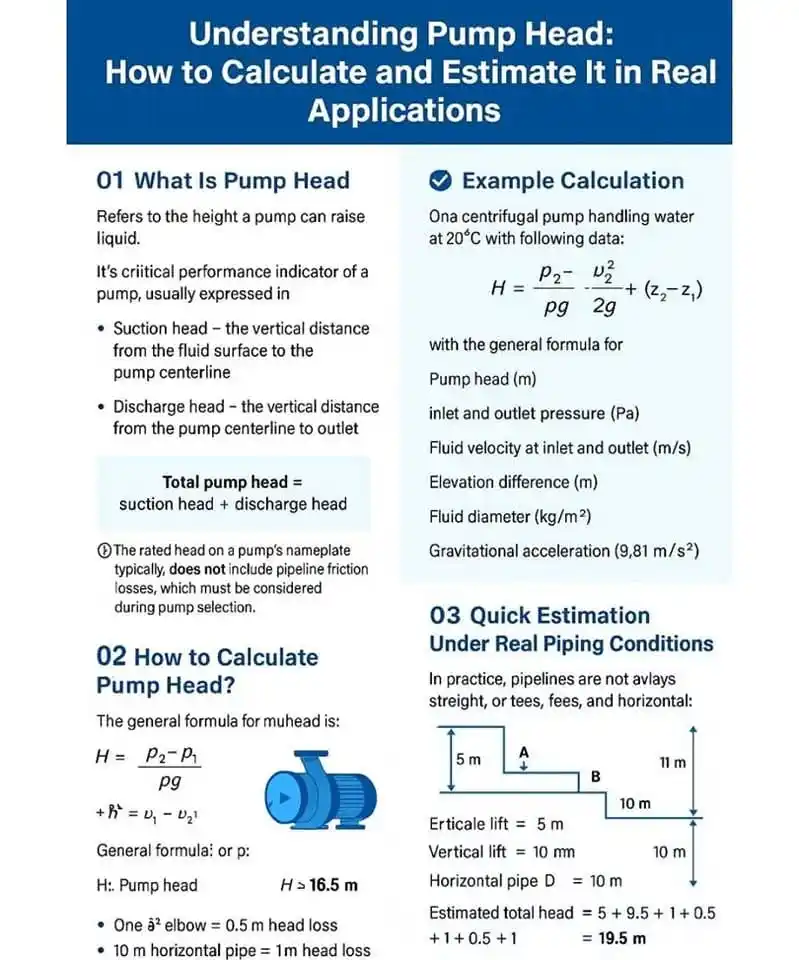

Understanding Pump Head - How to Calculate and Estimate it in Real World Applications‼️✅ Whether you're an engineer, technician, or plant operator - understanding pump head is essential for proper pump selection and system design. This visual guide breaks it down: What is pump head (suction + discharge) How to calculate it using Bernoulli-based formulas How to quickly estimate pump head under real piping conditions (tees, elbows, elevations, etc.) Includes practical tips like: Each 90° elbow ≈ 0.5 m head loss 10 m of horizontal pipe ≈ 1 m head loss Quick calculation with vertical & horizontal segments Real-life example included for a centrifugal pump handling water at 20°C! A must-share for mechanical/process engineers, EPC professionals, and anyone in fluid handling or pipeline systems. Save this for your next project and share it with your team! #mechanicalengineering #process Engineering #pumphead #fluid Mechanics #engineering Tips #pipingdesign #centrifugal Pump #linkedinlearning #chemical Engineering #plantdesign #projectengineering
